Single use
Ambu® Neuroline™ Inoject
The Ambu® Neuroline Inoject range comprises single patient EMG needle electrodes for injections with Botulinum Toxin. Ambu Neuroline Inoject™ is available in six different sizes to meet your needs with more choices.
Features & benefits
General information
Ambu Neuroline Inoject gives you the confidence and reliability you need during the injection of Botulinum Toxin. The needles are manufactured with the optimum combination between strength and flexibility.

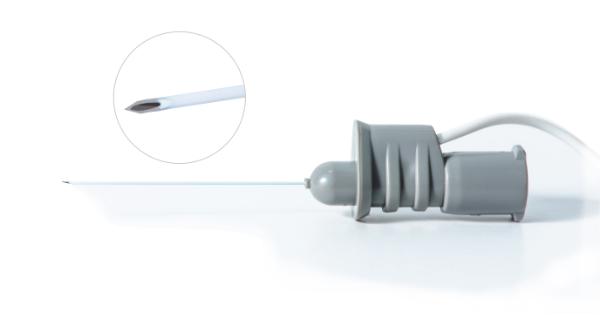

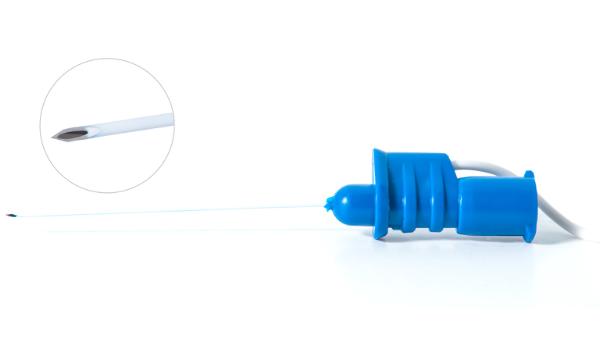

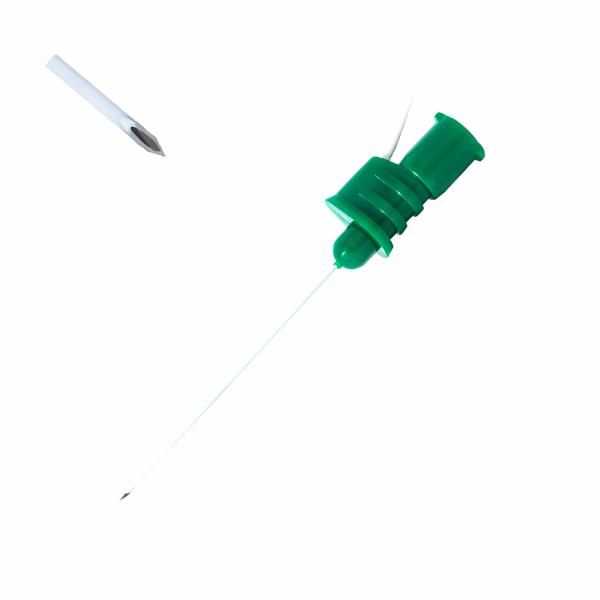

Ambu Neuroline Inoject needles are made of stainless steel with a smooth coating to minimize friction. The tip of the needle is sharpened with ultra precision to a back-cut bevel shape for consistent quality and easy skin penetration. The needle hub has a Luer-Lock fitting, which you can choose to use for a secure connection to the syringe.
The needles are available with a pre-attached 76 cm (30") lead wire featuring a 1.5 mm, touch-proof safety connector (DIN 42 802). The needles exist in 6 different sizes to cover all treatment areas.
Suitable applications
Specifications
| With pre-attached lead wire | Length | Calibre | ||
| Item no. | mm | inches | mm | Gauge |
| 744 25-30/10 | 25 | 1" | 0.30 | 30G |
| 744 30-36/10 | 30 | 1.2" | 0.36 | 28G |
| 744 35-40/10 | 35 | 1.4" | 0.40 | 27G |
| 744 38-45/10 | 38 | 1.5" | 0.45 | 26G |
| 744 50-50/10 | 50 | 2" | 0.50 | 25G |
| 744 75-55/10 | 75 | 3" | 0.55 | 24G |
Electrodes are packed in individual pouches. 10 electrodes per box.
Sensor type
Stainless steelNeedle length
6 lengths from 25 mm (1”) to 75 mm (3”)Lead wire length
76 cm (30”)Connector type
K-connectorSpare parts
There are no spare parts or accessories for this product.Downloads
Brochures
(9.26 MB - pdf)
Datasheets
(285.92 KB - pdf)
Supplementary Information
(1.22 MB - pdf)
(606.22 KB - pdf)
Note: US & CAN: Rx only
