Single use
Ambu® Neuroline™ Concentric
The Ambu® Neuroline Concentric range comprises single patient needle electrodes for EMG recordings. It is available in six different sizes to meet your needs with more choices. Superior robotic production with a unique vision control system ensures you a reliable and consistent quality.
Features & benefits
General information
Every size is manufactured with the optimum combination between strength and flexibility. A strength that will ensure that you can quickly locate the target area, and a flexibility that facilitates fine adjustments within the muscle.
The needle electrodes have a user-friendly hub with the special ribbing and now with an even more ergonomic shape to optimize your handling of the needle.
Suitable applications

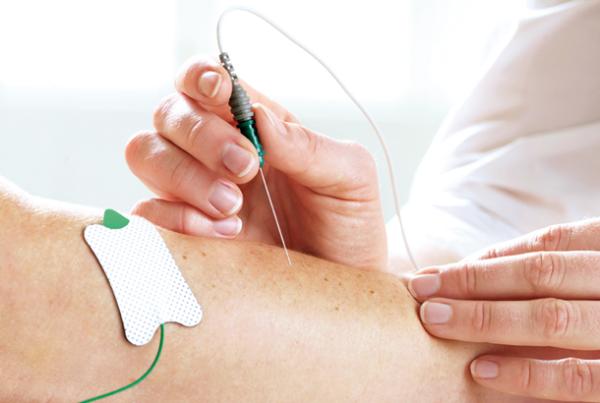

Electromyography (EMG)
Technical specifications

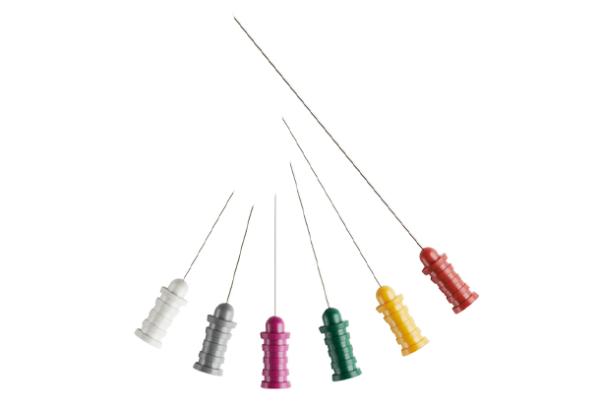

Needle Identification with color coding:
| Length | Calibre | Recording Area | |||
| Item no. | mm | inches | mm | Gauge | mm2 |

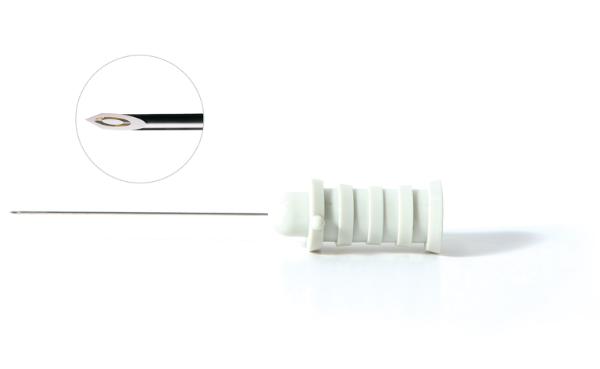

| 740 25-30/25 | 25 | 1" | 0.30 | 30G | 0.02 |
| 740 25-45/25 | 25 | 1" | 0.45 | 26G | 0.07 |

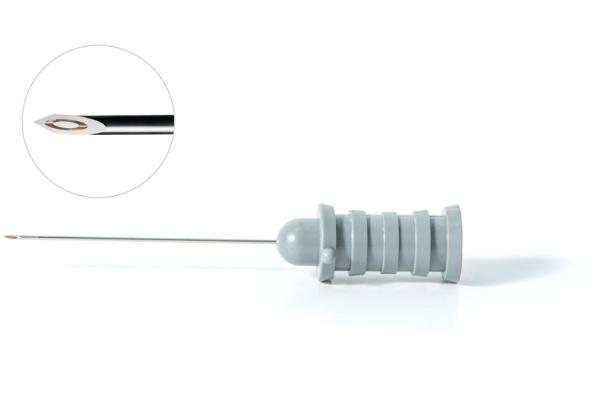

| 740 30-35/25 | 30 | 1.2" | 0.35 | 28G | 0.02 |

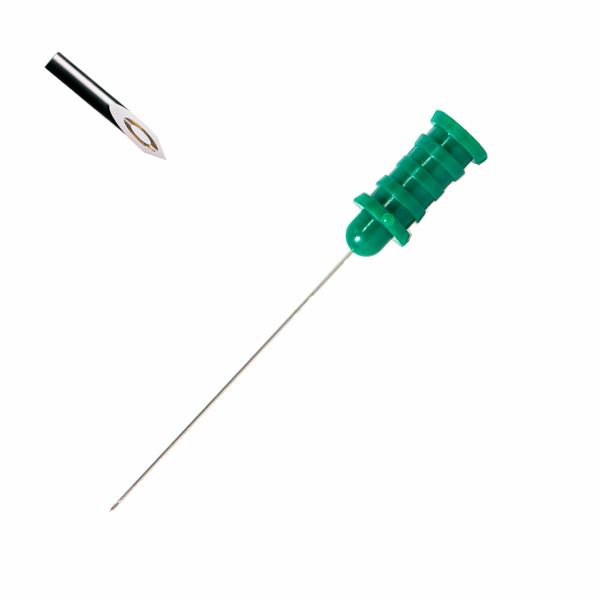

| 740 38-45/25 | 38 | 1.5" | 0.45 | 26G | 0.07 |
| 740 50-45/25 | 50 | 2" | 0.45 | 26G | 0.07 |

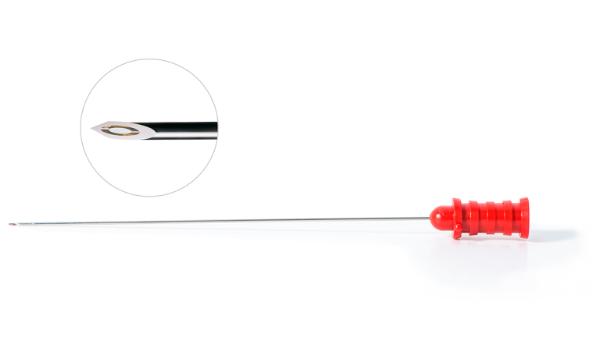

| 740 75-65/25 | 75 | 3" | 0.65 | 23G | 0.07 |
Electrodes are packed in individual pouches. 25 electrodes per box.
To complement our concentric needles Ambu has introduced a soft, flexible and re-usable cable with DIN-connector.
Please look under Spare parts & Accessories for further information.
Sensor type
SilverNeedle length
6 lengths from 25 mm (1”) to 75 mm (3”)Concentric Cable length
100 cm (40"), 200 cm (80")Connector type
DIN (60130-9)Spare parts
There are no spare parts or accessories for this product.Downloads
Brochures
(9.26 MB - pdf)
Datasheets
(281.51 KB - pdf)
Supplementary Information
(1.22 MB - pdf)
(606.22 KB - pdf)
January 2020
Note: US & CAN: Rx only
