Ambu® aScope™ 5 Broncho

Ambu® aScope™ 5 Broncho

Bronchoscopy like you’ve never seen it before

Request Demo

Ambu® aScope™ 5 Broncho is a family of single-use sterile bronchoscopes that works with Ambu® aBox™ 2 display and processing unit.

A new era of single-use performance

aScope 5 Broncho combines the excellent maneuverability and next-level imaging needed in the bronchoscopy suite with the sterility and efficiency of the single-use concept.

Greater flexibility for your workflow

You have a variety of sizes available whenever you need them. This eliminates the need for cancellations or rescheduling.

Sterility offers an extra measure of safety

You get a brand-new, sterile bronchoscope straight from the pack every time, eliminating the risk of patient-to-patient contamination.



    Key benefits

    Consistently high performance, sterility and flexibility

    Excellent maneuverability

    Bending angles of 195°/195° (5.6/2.8 and 5.0/2.2) and 210°/210° (4.2/2.2 and 2.7/1.2), distal tip angulation range, flexible insertion tube & 120° left/right rotation function.

    Broad endotherapy instrument compatibility

    Compatible with various endotherapy instruments, including active tools.

    Next-level imaging

    High-resolution camera chip* with 2 LEDs in scope and full-HD display unit.

    *Available in 5.6/2.8 and 5.0/2.2

    Always a brand new scope

    Sterile straight from the pack. No worries about damage or deterioration of image quality or bending performance.

    Easier to plan and manage schedules

    Continuous availability can save you from the inefficiency of cancellations.

    Frees up time and resources

    Eliminates the need for reprocessing and maintenance.

    4 different sizes offer flexibility

    Always available for diagnostic or therapeutic procedures, peripheral airways, smaller anatomies and pediatric patients.

    Setting new standards for single-use sustainability

    World’s first bronchoscope with bioplastic material in the handles and part of the Ambu Recircle recycling program.

    Learn More

    Features

    Take a closer look

    add_circle1

    Working channel port

    Includes pre-attached biopsy valve and clearly indicated working channel size.
    add_circle2

    Multifunction buttons

    Use the 2 buttons to control up to 4 programmable functions (image capture, video recording, zoom and ARC (Advanced Red Contrast).
    add_circle3

    Suction button and connector

    Connect suction and activate as needed by pressing button.
    add_circle4

    Bending section

    Access difficult-to-reach areas with 195°/195° (5.6/2.8 and 5.0/2.2) and 210°/210° (4.2/2.2 and 2.7/1.2) bending angles, distal tip angulation range, flexible insertion tube and rotation function.
    add_circle5

    Control lever

    Moves the distal tip up and down in a single plane.
    add_circle6

    Handle grip

    Rounded tactile surface for optimal hand positioning.
    add_circle7

    Rotation ring

    Designed to support access to difficult-to-reach areas and to ease insertion of endotherapy instruments allowing 120° left/right rotation.
    add_circle8

    Depth marks

    Marks every 5 cm to measure the distance to or from a specific area.
    add_circle9

    ET Tube connection

    For ET tube parking during insertion.
    add_circle10

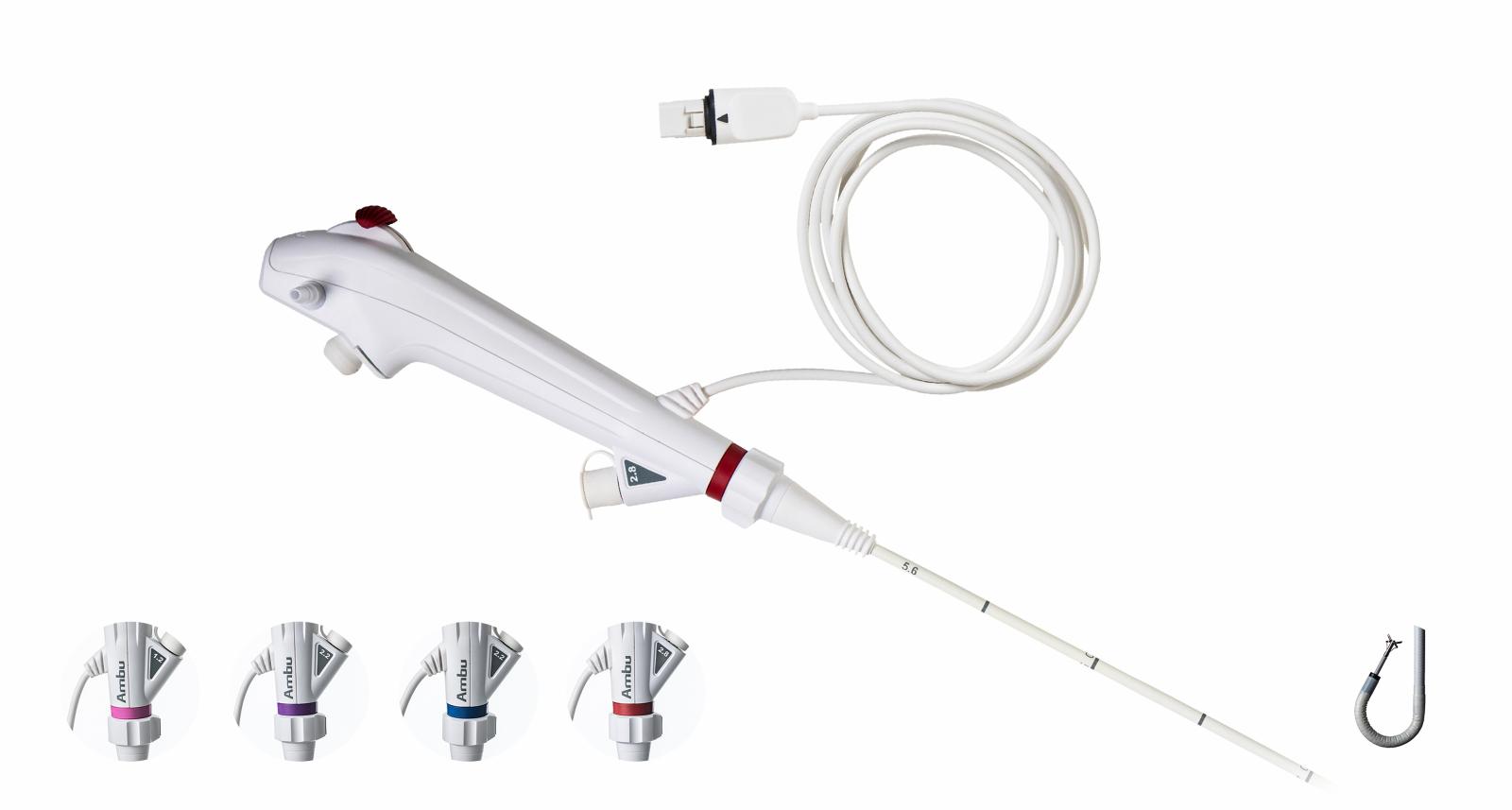

    Four sizes available

    aScope 5 Broncho 2.7/1.2, aScope 5 Broncho 4.2/2.2, aScope 5 Broncho HD 5.0/2.2, aScope 5 Broncho HD 5.6/2.8
    Includes pre-attached biopsy valve and clearly indicated working channel size.
    Use the 2 buttons to control up to 4 programmable functions (image capture, video recording, zoom and ARC (Advanced Red Contrast).
    Connect suction and activate as needed by pressing button.
    Access difficult-to-reach areas with 195°/195° (5.6/2.8 and 5.0/2.2) and 210°/210° (4.2/2.2 and 2.7/1.2) bending angles, distal tip angulation range, flexible insertion tube and rotation function.
    Moves the distal tip up and down in a single plane.
    Rounded tactile surface for optimal hand positioning.
    Designed to support access to difficult-to-reach areas and to ease insertion of endotherapy instruments allowing 120° left/right rotation.
    Marks every 5 cm to measure the distance to or from a specific area.
    For ET tube parking during insertion.
    aScope 5 Broncho 2.7/1.2, aScope 5 Broncho 4.2/2.2, aScope 5 Broncho HD 5.0/2.2, aScope 5 Broncho HD 5.6/2.8

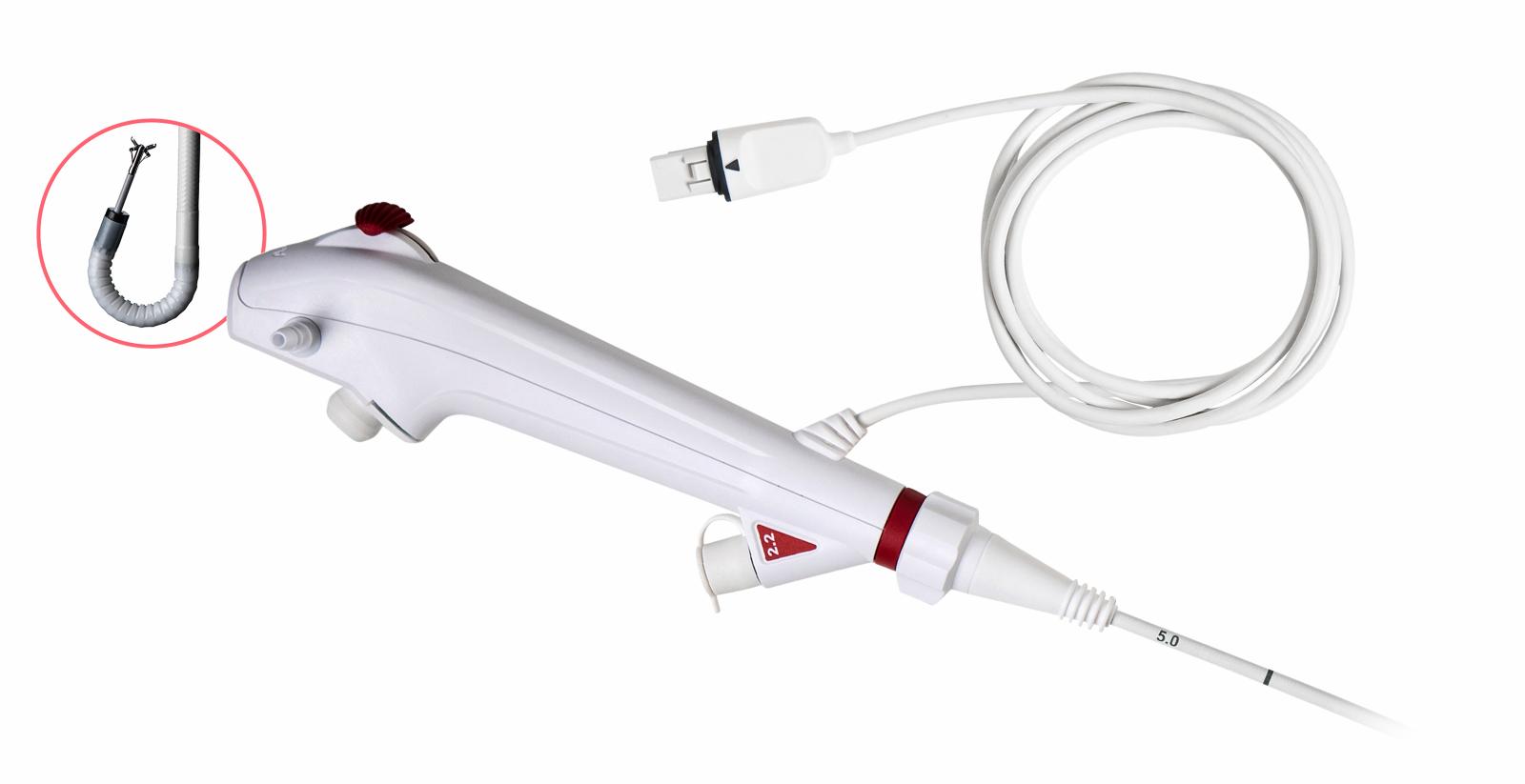

    Note: aScope 5 Broncho HD 5.6/2.8 is shown in the image.
    Some features will differ depending on the scope size.
    ​See product family for product comparison.

      Bronchoscopy like you’ve never seen it before. Introducing aScope 5 Broncho.

      aScope 5 Broncho family of high-performance, single-use sterile bronchoscopes

      Different sizes are available whenever you need them for diagnostic or therapeutic procedures:

      • Ambu® aScope™ 5 Broncho HD 5.6/2.8
      • Ambu® aScope™ 5 Broncho HD 5.0/2.2

      The Ambu® aBox™ 2 display and processing unit

      aBox 2 is a full-HD resolution unit with a built-in touchscreen, intuitive user interface and plug-and-play connectivity. You can zoom in and out, capture images and videos, review them post-procedure with patients or colleagues. Compatibility with PACS servers and electronic medical record software makes documentation smooth and efficient.

      See also, our full range of high-quality airway management and anesthesia products.

      Technical specifications

      aScope 5 Broncho family

      4 sizes (outer diameter/inner diameter)
      5.6/2.8
      5.0/2.2
      4.2/2.2
      2.7/1.2

      Bending angles
      5.6/2.8: 195°/195°
      5.0/2.2: 195°/195°
      4.2/2.2: 210°/210°
      2.7/1.2: 210°/210°

      Imaging
      5.6/2.8: HD System
      ​5.0/2.2: HD System

      Depth of field (mm)

      3-100

      Field of view (degrees)

      120°

      Adaptive exposure control

      Yes

      Image enhancement

      ARC (Advanced Red Contrast) functionality

      Rotation function

      120° left/right

      Endoscope buttons

      2 buttons with 4 functionalities

      Depth marks

      Every 5 cm

      Downloads

      Brochures

      file_download Ambu® aScope™ 5 Broncho - Features
      (2.5 MB - pdf)
      file_download Ambu® aScope™ 5 Broncho Brochure
      (7.52 MB - pdf)

      Datasheets

      file_download Ambu® aScope™ 5 Broncho HD 5.0/2.2 Datasheet
      (423.06 KB - pdf)
      file_download Ambu® aScope™ 5 Broncho HD 5.6/2.8 Datasheet
      (430.95 KB - pdf)

      Supplementary Information

      file_download aScope Sustainability Program
      (449.21 KB - pdf)

      Note: US: Rx only
